Scanpack Tape
The Scanpack Tape accessory is a smart measuring station powered by a Bluetooth digital tape measure.

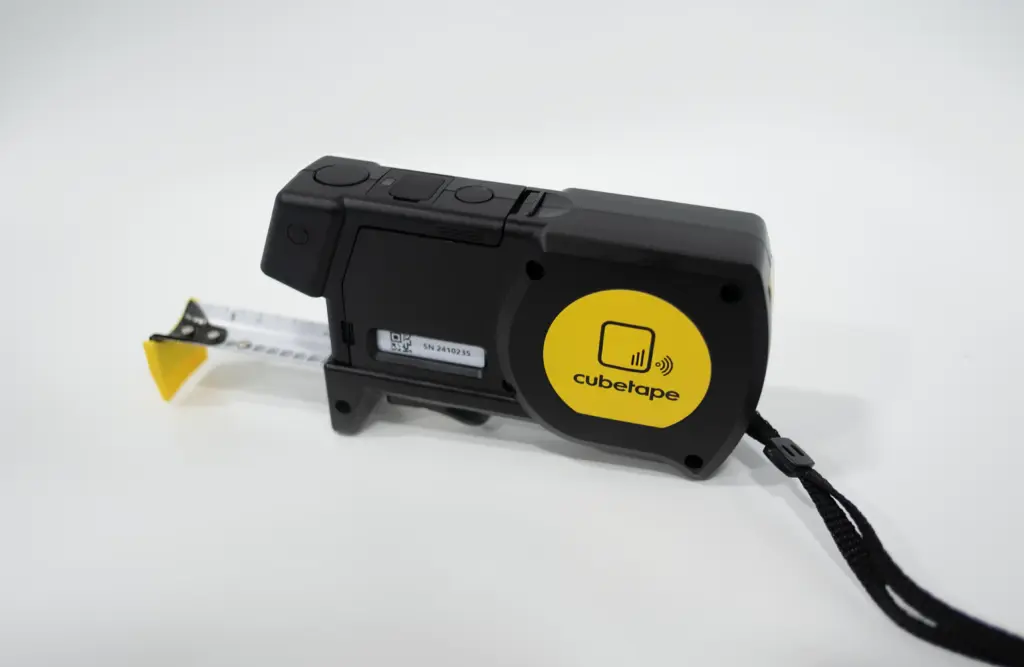

The Scanpack Tape version introduces a portable and intelligent measuring system that uses the Cubetape digital tape measure to capture product dimensions quickly and intuitively.
Measurements are acquired through the built-in camera and automatically transmitted via Bluetooth to the Scanpack PC and then directly to the packaging machine for on-demand box production.
The portable configuration makes it possible to measure oversized or out-of-gauge items, eliminating the limitations of traditional measuring benches.
Key Benefits
- Compatible with bulky or irregularly shaped products, even outside the measuring station surface
- High precision (up to 2 mm)
- Instant Bluetooth data transmission, with no manual input required
- Seamless integration with Scanpack software for automatic box production

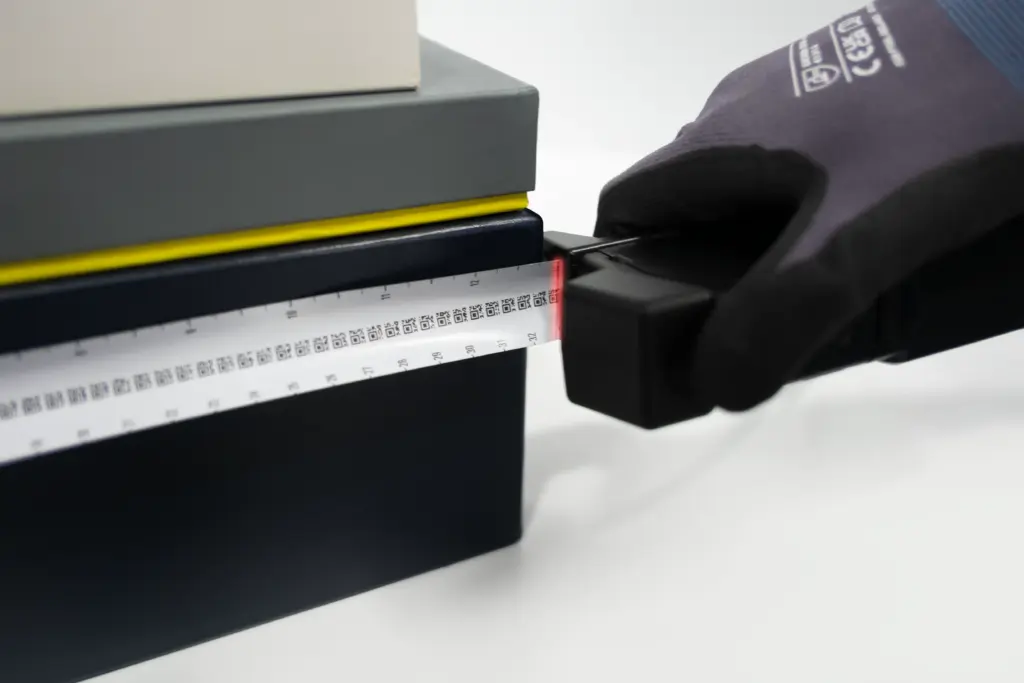

- Improved operational ergonomics: the operator measures directly on the item like using a standard tape measure
- Reduced measuring time, enabling smooth and uninterrupted workflows
Choose the Scanpack Tape measuring accessory to optimize your company’s logistics.
Work phases
Features
-
Measuring Mode: Automatic via Integrated Camera
-
Accuracy ±2 mm
-
Wide measuring range handling products up to 5 meters in length
-
Measurement capture time: under 5 seconds
-
Operating temperature: -30°C / +70°C
-
Shock resistance up to 1.5 m drop onto concrete
-
Optional 1D/2D barcode scanning (depending on model support)
-
Battery life: minimum 8 hours / recharge time: 3 hours
Industry Applications
E-commerce & Logistics
The ideal solution for companies managing a wide range of products, effectively addressing the complexity of tracking the dimensions of items to be packed.
Digital Printing
In digital printing environments, where customization and product variety are standard, the Scanpack system eliminates the need to maintain a crowded warehouse filled with boxes in multiple sizes for different products.
Technical
data
